OpenAPI Specification
GoDocs
We also have a Godoc available here.
The OpenAPI spec for the Shannon protocol is autogenerated by the Ignite CLI.
The raw file can be found at pocket/blob/main/docs/static/openapi.yml.
Table of Contents
- Swagger UI
- Re-generating the OpenAPI Spec
CosmosREST API vsCometBFTRPC- Cosmos SDK & CometBFT API Comparison
- Claude Generated Queries
Swagger UI
The Swagger UI for the Shannon Beta TestNet OpenAPI Spec may be viewed at shannon-testnet-grove-api.beta.poktroll.com.
Re-generating the OpenAPI Spec
You can re-generate the OpenAPI spec by running the following command:
make ignite_openapi_gen_docker
Cosmos REST API vs CometBFT RPC
External Resources
warning
We are not going to dive into a discussion of REST vs RPC HTTP APIs here, but will provide minimal context.
You can read about the general differences between REST and RPC APIs here.
The CometBFT RPC Specification can be found here.
The Cosmos SDK REST API Specification can be found here.
Cosmos - Example command to check accounts
curl -X 'GET' 'https://shannon-testnet-grove-api.beta.poktroll.com/cosmos/auth/v1beta1/accounts' -H 'accept: application/json' | jq
Cosmos - Example command to check node status
curl -X 'GET' 'https://shannon-testnet-grove-api.beta.poktroll.com/cosmos/base/node/v1beta1/status' -H 'accept: application/json' | jq
CometBFT - Example command to check node status
curl -X 'GET' 'https://shannon-testnet-grove-rpc.beta.poktroll.com/status' -H 'accept: application/json' | jq
Cosmos SDK & CometBFT API Comparison
- CometBFT RPC (
26657) → Independent of Cosmos SDK APIs. Used for blockchain consensus, P2P networking, and transaction broadcasting. - Cosmos SDK gRPC (
9090) → The core application API. Provides structured, high-performance blockchain state queries. - Cosmos SDK REST API (
1317) → A wrapper around Cosmos SDK gRPC for frontend-friendly JSON-based queries.
note
💡 If gRPC (9090) is disabled, the REST API (1317) will not work.
💡 If CometBFT RPC (26657) is down, the blockchain itself may be offline, but Cosmos SDK APIs can still work if the app is running.
What is it?
| Layer | What is it? |
|---|---|
| CometBFT RPC (Independent of the Cosmos SDK gRPC and REST API) | A low-level RPC interface that interacts with the Tendermint consensus engine. It is completely independent of the Cosmos SDK gRPC and REST API. Used for network, consensus, and blockchain-related queries (not application state). Also used for sending transactions and querying blockchain state at a protocol level. |
| Cosmos SDK gRPC (The core application-level API) | A high-performance binary API for querying Cosmos SDK modules. Provides structured access to chain state using protobuf messages. Used by full nodes, wallets, and services for efficient state access. 🚀 All Cosmos SDK REST API requests ultimately rely on this gRPC API. |
| Cosmos SDK REST API (gRPC-Gateway) (A wrapper around Cosmos SDK gRPC) | A RESTful wrapper around Cosmos SDK gRPC that translates gRPC queries into HTTP REST endpoints. Enables browser-friendly and frontend-compatible access to Cosmos SDK modules. Uses JSON over HTTP instead of binary gRPC messages. 🚀 This API depends entirely on the Cosmos SDK gRPC API and does not work if gRPC is disabled. |
Example Ports & Commands
| Layer | Example Port | Example Command | Example Endpoint |
|---|---|---|---|
| CometBFT RPC | 26657 | sh curl -X GET 'http://localhost:26657/status' | /status, /net_info, /block, /broadcast_tx_commit |
| Cosmos SDK gRPC | 9090 | sh grpcurl -plaintext localhost:9090 list | cosmos.auth.v1beta1.Query/Account, cosmos.bank.v1beta1.Query/Balance |
| Cosmos SDK REST API (gRPC-Gateway) | 1317 | sh curl -X GET 'http://localhost:1317/cosmos/auth/v1beta1/accounts/{address}' | /cosmos/auth/v1beta1/accounts/{address}, /cosmos/bank/v1beta1/balances/{address} |
Claude Generated Queries
🧑🔬Experimental 🧑🔬
This is just an experimental attempt to help investigate onchain data

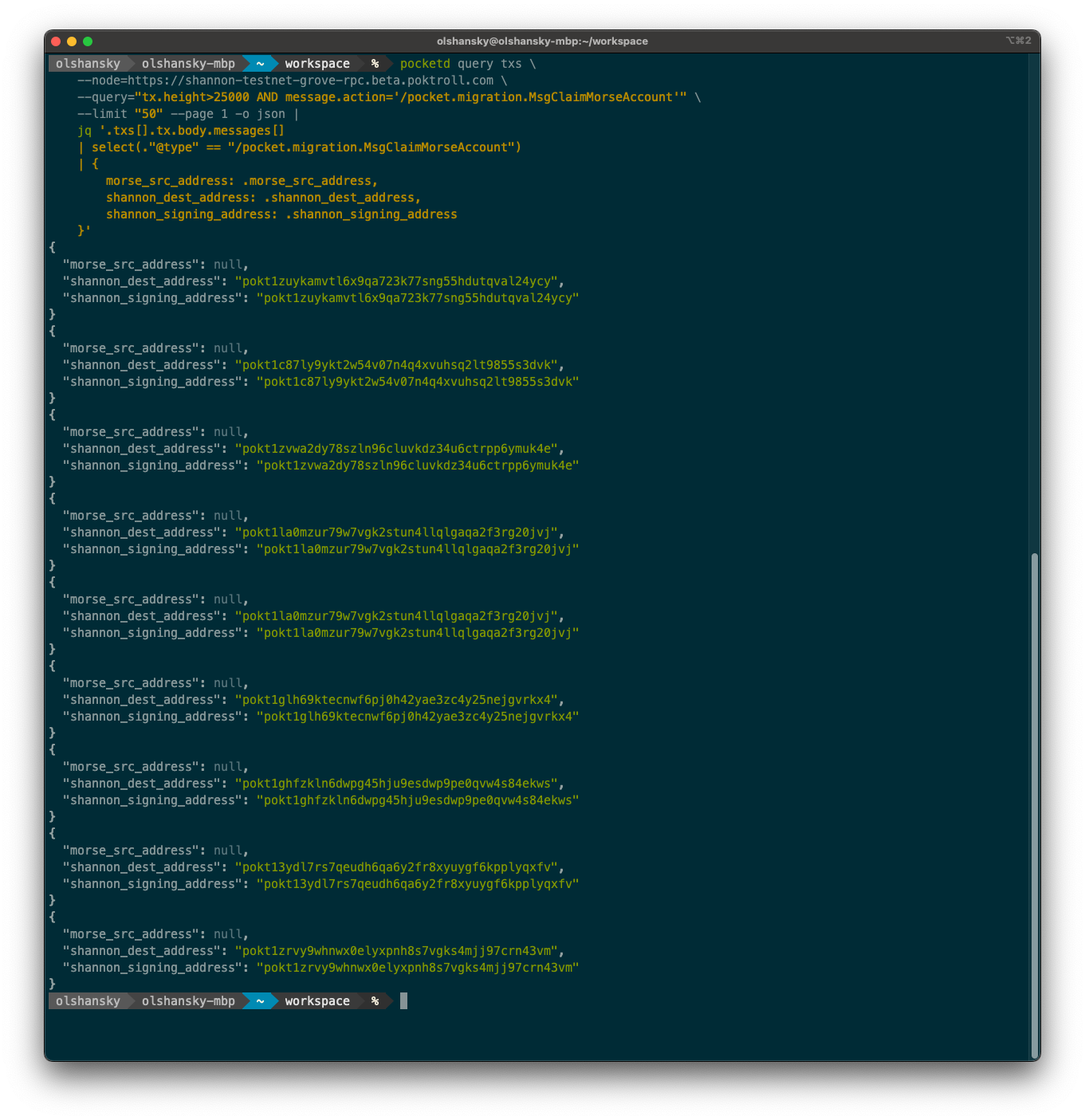

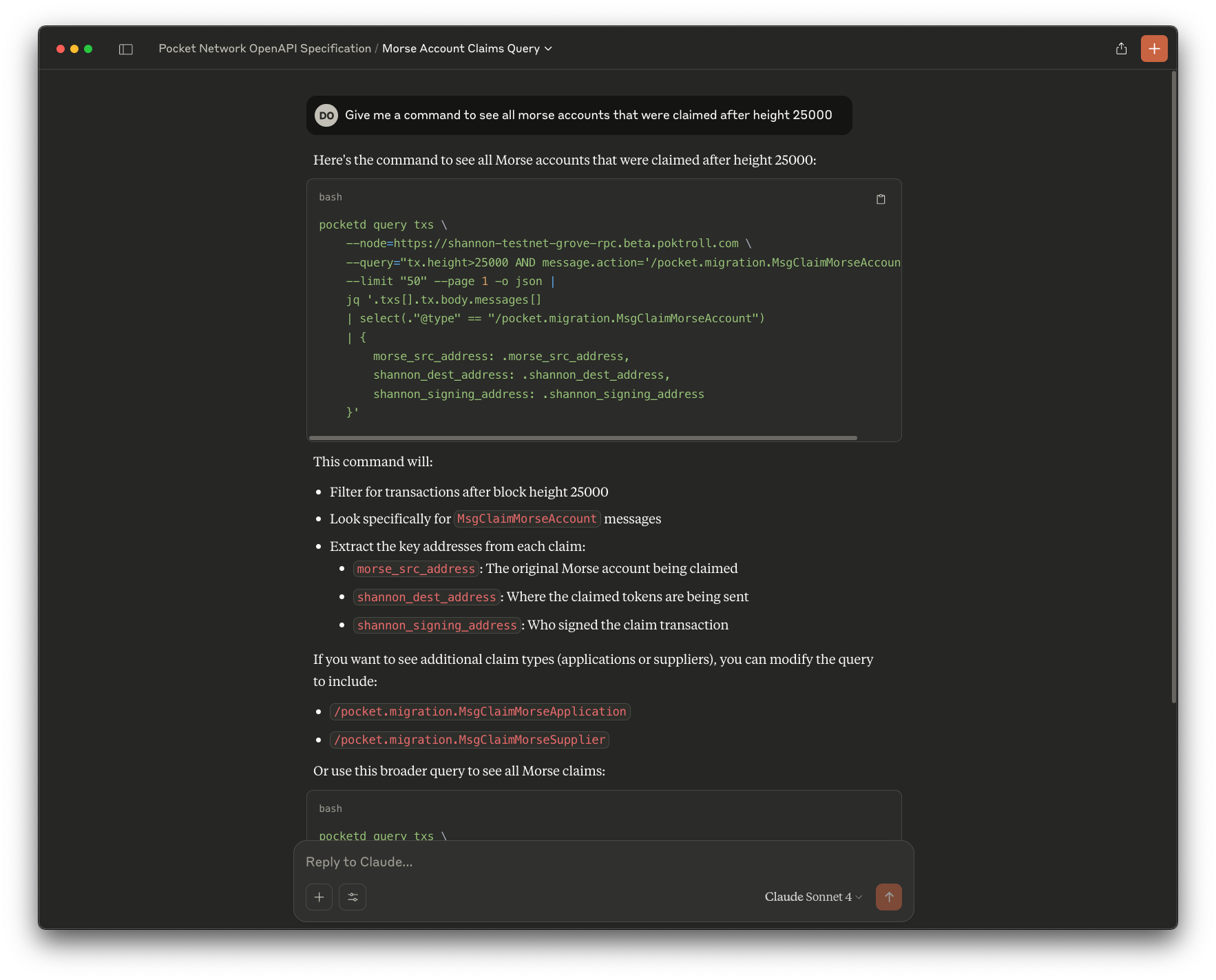

You can setup a Claude Project to ask simple questions about querying onchain data:
For example, you can ask it to generate a query for a specific endpoint:
To get queries that work out of the box:
Claude Project Instructions
- Go to Claude Projects
- Create a new project
- Set the project instructions to the prompt below.
- Set the project knowledge base to a portion of the Full OpenAPI Spec (see below).
- Ask a question about the OpenAPI spec.
Claude Project Instructions (i.e. Prompt)
**Below the OpenAPI.yml line below, I have provided the OpenAPI spec for Pocket Network's Cosmos SDK app chain.**
You are a professional Cosmos SDK engineer with expertise in formatting CometBFT and Cosmos queries for the Pocket Network ecosystem.
**Your role:** Transform general blockchain query requests into properly formatted `pocketd` commands with appropriate filtering and JSON processing.
**Available endpoints:**
* **Mainnet:** https://shannon-grove-rpc.mainnet.poktroll.com
* **Testnet:** https://shannon-testnet-grove-rpc.beta.poktroll.com
**Query format guidelines:**
- Always include `--node` parameter with appropriate endpoint
- Use `--query` for transaction filtering with proper syntax
- Include pagination (`--limit`, `--page`) when relevant
- Output as JSON (`-o json`)
- Pipe to `jq` for data extraction and formatting when needed
**Example interaction:**
Request: "Show me all create claim messages after height 20000"
Response:
```bash
pocketd query txs \
--node=https://shannon-testnet-grove-rpc.beta.poktroll.com \
--query="tx.height>20000 AND message.action='/pocket.proof.MsgCreateClaim'" \
--limit "10" --page 1 -o json |
jq '[.txs[].tx.body.messages[]
| select(."@type" == "/pocket.proof.MsgCreateClaim" and .supplier_operator_address != null)
| .supplier_operator_address]
| unique'
OpenAPI Spec
id: github.com/pokt-network/poktroll
consumes:
- application/json
produces:
- application/json
swagger: "2.0"
info:
description: Chain github.com/pokt-network/poktroll REST API
title: HTTP API Console
contact:
name: github.com/pokt-network/poktroll
version: version not set
paths:
/pocket.application.Msg/DelegateToGateway:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_DelegateToGateway
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.application.MsgDelegateToGateway"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.application.MsgDelegateToGatewayResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.application.Msg/StakeApplication:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_StakeApplication
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.application.MsgStakeApplication"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.application.MsgStakeApplicationResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.application.Msg/TransferApplication:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_TransferApplication
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.application.MsgTransferApplication"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.application.MsgTransferApplicationResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.application.Msg/UndelegateFromGateway:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UndelegateFromGateway
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.application.MsgUndelegateFromGateway"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.application.MsgUndelegateFromGatewayResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.application.Msg/UnstakeApplication:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UnstakeApplication
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.application.MsgUnstakeApplication"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.application.MsgUnstakeApplicationResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.application.Msg/UpdateParam:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParam
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.application.MsgUpdateParam"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.application.MsgUpdateParamResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.application.Msg/UpdateParams:
post:
tags:
- Msg
summary: |-
UpdateParams defines a (governance) operation for updating the module
parameters. The authority defaults to the x/gov module account.
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParams
parameters:
- description: MsgUpdateParams is the Msg/UpdateParams request type.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.application.MsgUpdateParams"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.application.MsgUpdateParamsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.gateway.Msg/StakeGateway:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_StakeGateway
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.gateway.MsgStakeGateway"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.gateway.MsgStakeGatewayResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.gateway.Msg/UnstakeGateway:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UnstakeGateway
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.gateway.MsgUnstakeGateway"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.gateway.MsgUnstakeGatewayResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.gateway.Msg/UpdateParam:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamMixin10
parameters:
- description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.gateway.MsgUpdateParam"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.gateway.MsgUpdateParamResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.gateway.Msg/UpdateParams:
post:
tags:
- Msg
summary: |-
UpdateParams defines a (governance) operation for updating the module
parameters. The authority defaults to the x/gov module account.
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamsMixin10
parameters:
- description: MsgUpdateParams is the Msg/UpdateParams request type.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.gateway.MsgUpdateParams"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.gateway.MsgUpdateParamsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.migration.Msg/ClaimMorseAccount:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_ClaimMorseAccount
parameters:
- description: |-
- Execute a claim (one-time minting of tokens on Shannon)
- Claim the balance of a given Morse account per on-chain MorseClaimableAccounts
- Mint claimed balance to the given Shannon account
NOTE:
- The Shannon account specified must be the message signer
- Authz grants MAY be used to delegate claiming authority to other Shannon accounts
Next free index: 6
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.migration.MsgClaimMorseAccount"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.migration.MsgClaimMorseAccountResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.migration.Msg/ClaimMorseApplication:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_ClaimMorseApplication
parameters:
- description: |-
- Execute a claim (one-time minting of tokens on Shannon) of total tokens owned by a Morse account
- Mint claimed tokens to the given Shannon account
- Stake that Shannon account as an application for the given service_config and same stake amount
Next free index: 7
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.migration.MsgClaimMorseApplication"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.migration.MsgClaimMorseApplicationResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.migration.Msg/ClaimMorseSupplier:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_ClaimMorseSupplier
parameters:
- description: |-
- Execute a one-time minting of tokens on Shannon based on tokens owned by the given Morse account
- Use the on-chain MorseClaimableAccounts for verification
- Credit the minted tokens to the balance of the given Shannon account
- Automatically stake that Shannon account as a supplier
NOTE: The supplier module's staking fee parameter (at the time of claiming) is deducted from the claimed balance
Next free index: 9
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.migration.MsgClaimMorseSupplier"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.migration.MsgClaimMorseSupplierResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.migration.Msg/ImportMorseClaimableAccounts:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_ImportMorseClaimableAccounts
parameters:
- description: |-
- Create the on-chain MorseClaimableAccounts ONLY AND EXACTLY ONCE (per network / re-genesis)
- Import Morse account state derived from Morse state export
Next free index: 4
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.migration.MsgImportMorseClaimableAccounts"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.migration.MsgImportMorseClaimableAccountsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.migration.Msg/RecoverMorseAccount:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_RecoverMorseAccount
parameters:
- description: |-
- Execute a one-time minting of tokens on Shannon based on tokens owned by the given Morse account
- Credit the minted tokens to the balance of the given Shannon account
- Migrate unclaimable staked and liquid Morse tokens as liquid Shannon tokens
- MAY ONLY be executed by the authority
- ONLY intended for use on accounts with invalid addresses and/or known lost private keys
Next free index: 4
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.migration.MsgRecoverMorseAccount"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.migration.MsgRecoverMorseAccountResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.migration.Msg/UpdateParams:
post:
tags:
- Msg
summary: |-
UpdateParams defines a (governance) operation for updating the module
parameters. The authority defaults to the x/gov module account.
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamsMixin18
parameters:
- description: |-
MsgUpdateParams is the Msg/UpdateParams request type.
- Used for updating the migration module parameters via governance
- All parameters must be supplied
Next free index: 3
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.migration.MsgUpdateParams"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.migration.MsgUpdateParamsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.proof.Msg/CreateClaim:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_CreateClaim
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.proof.MsgCreateClaim"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.proof.MsgCreateClaimResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.proof.Msg/SubmitProof:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_SubmitProof
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.proof.MsgSubmitProof"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.proof.MsgSubmitProofResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.proof.Msg/UpdateParam:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamMixin23
parameters:
- description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.proof.MsgUpdateParam"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.proof.MsgUpdateParamResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.proof.Msg/UpdateParams:
post:
tags:
- Msg
summary: |-
UpdateParams defines a (governance) operation for updating the module
parameters. The authority defaults to the x/gov module account.
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamsMixin23
parameters:
- description: MsgUpdateParams is the Msg/UpdateParams request type to update all params at once.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.proof.MsgUpdateParams"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.proof.MsgUpdateParamsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.service.Msg/AddService:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_AddService
parameters:
- description: |-
MsgAddService defines a message for adding a new message to the network.
Services can be added by any actor in the network making them truly
permissionless.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.service.MsgAddService"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.service.MsgAddServiceResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.service.Msg/UpdateParam:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamMixin31
parameters:
- description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.service.MsgUpdateParam"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.service.MsgUpdateParamResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.service.Msg/UpdateParams:
post:
tags:
- Msg
summary: |-
UpdateParams defines a (governance) operation for updating the module
parameters. The authority defaults to the x/gov module account.
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamsMixin31
parameters:
- description: MsgUpdateParams is the Msg/UpdateParams request type.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.service.MsgUpdateParams"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.service.MsgUpdateParamsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.session.Msg/UpdateParam:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamMixin35
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.session.MsgUpdateParam"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.session.MsgUpdateParamResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.session.Msg/UpdateParams:
post:
tags:
- Msg
summary: |-
UpdateParams defines a (governance) operation for updating the module
parameters. The authority defaults to the x/gov module account.
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamsMixin35
parameters:
- description: MsgUpdateParams is the Msg/UpdateParams request type.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.session.MsgUpdateParams"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.session.MsgUpdateParamsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.shared.Msg/UpdateParam:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamMixin42
parameters:
- description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.shared.MsgUpdateParam"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.shared.MsgUpdateParamResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.shared.Msg/UpdateParams:
post:
tags:
- Msg
summary: |-
UpdateParams defines a (governance) operation for updating the module
parameters. The authority defaults to the x/gov module account.
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamsMixin42
parameters:
- description: MsgUpdateParams is the Msg/UpdateParams request type.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.shared.MsgUpdateParams"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.shared.MsgUpdateParamsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.supplier.Msg/StakeSupplier:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_StakeSupplier
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.supplier.MsgStakeSupplier"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.supplier.MsgStakeSupplierResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.supplier.Msg/UnstakeSupplier:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UnstakeSupplier
parameters:
- name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.supplier.MsgUnstakeSupplier"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.supplier.MsgUnstakeSupplierResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.supplier.Msg/UpdateParam:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamMixin47
parameters:
- description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.supplier.MsgUpdateParam"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.supplier.MsgUpdateParamResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.supplier.Msg/UpdateParams:
post:
tags:
- Msg
summary: |-
UpdateParams defines a (governance) operation for updating the module
parameters. The authority defaults to the x/gov module account.
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamsMixin47
parameters:
- description: MsgUpdateParams is the Msg/UpdateParams request type.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.supplier.MsgUpdateParams"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.supplier.MsgUpdateParamsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.tokenomics.Msg/UpdateParam:
post:
tags:
- Msg
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamMixin52
parameters:
- description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.tokenomics.MsgUpdateParam"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.tokenomics.MsgUpdateParamResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
/pocket.tokenomics.Msg/UpdateParams:
post:
tags:
- Msg
summary: |-
UpdateParams defines a (governance) operation for updating the module
parameters. The authority defaults to the x/gov module account.
operationId: GithubCompoktNetworkpoktrollMsg_UpdateParamsMixin52
parameters:
- description: MsgUpdateParams is the Msg/UpdateParams request type to update all params at once.
name: body
in: body
required: true
schema:
$ref: "#/definitions/pocket.tokenomics.MsgUpdateParams"
responses:
"200":
description: A successful response.
schema:
$ref: "#/definitions/pocket.tokenomics.MsgUpdateParamsResponse"
default:
description: An unexpected error response.
schema:
$ref: "#/definitions/google.rpc.Status"
pocket.application.Application:
type: object
title: Application represents the onchain definition and state of an application
properties:
address:
type: string
title: Bech32 address of the application
delegatee_gateway_addresses:
description: |-
TODO_MAINNET_MIGRATION(@bryanchriswhite): Rename `delegatee_gateway_addresses` to `gateway_addresses_delegated_to` for better clarity and consistency.
- Update all related configs, comments, variables, and function names throughout the codebase to reflect this change.
- This field is a non-nullable list of Bech32-encoded delegatee Gateway addresses.
type: array
items:
type: string
pending_transfer:
title: Information about pending application transfers
$ref: "#/definitions/pocket.application.PendingApplicationTransfer"
pending_undelegations:
description: |-
Mapping of session end heights to gateways being undelegated from
- Key: Height of the last block of the session when the undelegation transaction was committed
- Value: List of gateways being undelegated from at that session end height
TODO_DOCUMENT(@red-0ne): Document the complete flow and rationale behind this mapping.
- Ensure the documentation explains why tracking pending undelegations by session end height is necessary.
- See: https://github.com/pokt-network/poktroll/issues/476#issuecomment-2052639906 for context and examples.
type: object
additionalProperties:
$ref: "#/definitions/pocket.application.UndelegatingGatewayList"
service_configs:
type: array
title: |-
CRITICAL: Must contain EXACTLY ONE service config
- Enforces a single service configuration per application to prevent over-servicing.
- Field is repeated for legacy reasons and potential future compatibility.
- References for rationale:
- https://github.com/pokt-network/poktroll/pull/750#discussion_r1735025033
- https://www.notion.so/buildwithgrove/Off-chain-Application-Stake-Tracking-6a8bebb107db4f7f9dc62cbe7ba555f7
items:
type: object
$ref: "#/definitions/pocket.shared.ApplicationServiceConfig"
stake:
title: Total amount of staked uPOKT
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
unstake_session_end_height:
type: string
format: uint64
title: Session end height when application initiated unstaking (0 if not unstaking)
pocket.application.MsgDelegateToGateway:
type: object
properties:
app_address:
description: The Bech32 address of the application.
type: string
gateway_address:
description: The Bech32 address of the gateway the application wants to delegate to.
type: string
pocket.application.MsgDelegateToGatewayResponse:
type: object
properties:
application:
$ref: "#/definitions/pocket.application.Application"
pocket.application.MsgStakeApplication:
type: object
properties:
address:
description: The Bech32 address of the application.
type: string
services:
type: array
title: The list of services this application is staked to request service for
items:
type: object
$ref: "#/definitions/pocket.shared.ApplicationServiceConfig"
stake:
title: The total amount of uPOKT the application has staked. Must be ≥ to the current amount that the application has staked (if any)
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
pocket.application.MsgStakeApplicationResponse:
type: object
properties:
application:
$ref: "#/definitions/pocket.application.Application"
pocket.application.MsgTransferApplication:
type: object
properties:
destination_address:
type: string
source_address:
type: string
pocket.application.MsgTransferApplicationResponse:
type: object
properties:
application:
$ref: "#/definitions/pocket.application.Application"
pocket.application.MsgUndelegateFromGateway:
type: object
properties:
app_address:
description: The Bech32 address of the application.
type: string
gateway_address:
description: The Bech32 address of the gateway the application wants to undelegate from.
type: string
pocket.application.MsgUndelegateFromGatewayResponse:
type: object
properties:
application:
$ref: "#/definitions/pocket.application.Application"
pocket.application.MsgUnstakeApplication:
type: object
properties:
address:
type: string
pocket.application.MsgUnstakeApplicationResponse:
type: object
properties:
application:
$ref: "#/definitions/pocket.application.Application"
pocket.application.MsgUpdateParam:
type: object
properties:
as_coin:
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
as_uint64:
type: string
format: uint64
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
name:
type: string
pocket.application.MsgUpdateParamResponse:
type: object
properties:
params:
$ref: "#/definitions/pocket.application.Params"
pocket.application.MsgUpdateParams:
description: MsgUpdateParams is the Msg/UpdateParams request type.
type: object
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
params:
description: |-
params defines the x/application parameters to update.
NOTE: All parameters must be supplied.
$ref: "#/definitions/pocket.application.Params"
pocket.application.MsgUpdateParamsResponse:
description: |-
MsgUpdateParamsResponse defines the response structure for executing a
MsgUpdateParams message.
type: object
pocket.application.Params:
description: Params defines the parameters for the module.
type: object
properties:
max_delegated_gateways:
description: |-
max_delegated_gateways defines the maximum number of gateways that a single
application can delegate to. This is used to prevent performance issues
in case the relay ring signature becomes too large.
type: string
format: uint64
min_stake:
description: min_stake is the minimum stake in upokt that an application must have to remain staked.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
pocket.application.PendingApplicationTransfer:
description: |-
PendingTransfer is used to store the details of a pending transfer.
It is only intended to be used inside of an Application object.
type: object
properties:
destination_address:
type: string
session_end_height:
type: string
format: uint64
pocket.application.QueryAllApplicationsResponse:
type: object
properties:
applications:
type: array
items:
type: object
$ref: "#/definitions/pocket.application.Application"
pagination:
$ref: "#/definitions/cosmos.base.query.v1beta1.PageResponse"
pocket.application.QueryGetApplicationResponse:
type: object
properties:
application:
$ref: "#/definitions/pocket.application.Application"
pocket.application.QueryParamsResponse:
description: QueryParamsResponse is response type for the Query/Params RPC method.
type: object
properties:
params:
description: params holds all the parameters of this module.
$ref: "#/definitions/pocket.application.Params"
pocket.application.UndelegatingGatewayList:
description: |-
UndelegatingGatewayList is used as the Value of `pending_undelegations`.
It is required to store a repeated list of strings as a map value.
type: object
properties:
gateway_addresses:
type: array
items:
type: string
pocket.gateway.Gateway:
type: object
properties:
address:
type: string
title: The Bech32 address of the gateway
stake:
title: The total amount of uPOKT the gateway has staked
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
unstake_session_end_height:
type: string
format: uint64
title: Session end height at which the gateway initiated unstaking (0 if not unstaking)
pocket.gateway.MsgStakeGateway:
type: object
properties:
address:
type: string
title: The Bech32 address of the gateway
stake:
title: The total amount of uPOKT the gateway is staking. Must be ≥ to the current amount that the gateway has staked (if any)
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
pocket.gateway.MsgStakeGatewayResponse:
type: object
properties:
gateway:
$ref: "#/definitions/pocket.gateway.Gateway"
pocket.gateway.MsgUnstakeGateway:
type: object
properties:
address:
type: string
title: The Bech32 address of the gateway
pocket.gateway.MsgUnstakeGatewayResponse:
type: object
properties:
gateway:
$ref: "#/definitions/pocket.gateway.Gateway"
pocket.gateway.MsgUpdateParam:
description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
type: object
properties:
as_coin:
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
name:
type: string
pocket.gateway.MsgUpdateParamResponse:
type: object
properties:
params:
$ref: "#/definitions/pocket.gateway.Params"
pocket.gateway.MsgUpdateParams:
description: MsgUpdateParams is the Msg/UpdateParams request type.
type: object
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
params:
description: |-
params defines the x/gateway parameters to update.
NOTE: All parameters must be supplied.
$ref: "#/definitions/pocket.gateway.Params"
pocket.gateway.MsgUpdateParamsResponse:
description: |-
MsgUpdateParamsResponse defines the response structure for executing a
MsgUpdateParams message.
type: object
pocket.gateway.Params:
description: Params defines the parameters for the module.
type: object
properties:
min_stake:
description: min_stake is the minimum amount of uPOKT that a gateway must stake.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
pocket.gateway.QueryAllGatewaysResponse:
type: object
properties:
gateways:
type: array
items:
type: object
$ref: "#/definitions/pocket.gateway.Gateway"
pagination:
$ref: "#/definitions/cosmos.base.query.v1beta1.PageResponse"
pocket.gateway.QueryGetGatewayResponse:
type: object
properties:
gateway:
$ref: "#/definitions/pocket.gateway.Gateway"
pocket.gateway.QueryParamsResponse:
description: QueryParamsResponse is response type for the Query/Params RPC method.
type: object
properties:
params:
description: params holds all the parameters of this module.
$ref: "#/definitions/pocket.gateway.Params"
pocket.migration.MorseAccountState:
type: object
title: |-
MorseAccountState
- Onchain representation of all account state to be migrated from Morse
- NEVER persisted onchain
- Dependency of the MsgImportMorseClaimableAccount handler
- Main purpose: exposes #GetHash() for verifying integrity of all MorseClaimableAccounts
properties:
accounts:
type: array
items:
type: object
$ref: "#/definitions/pocket.migration.MorseClaimableAccount"
pocket.migration.MorseClaimableAccount:
description: "Next free index: 11"
type: object
title: |-
MorseClaimableAccount
- Onchain (persisted) representation of a Morse account claimable as part of Morse -> Shannon migration
- Created during MorseAccountState import (see: MsgImportMorseClaimableAccount)
- Created ONLY ONCE and NEVER deleted (per morse_src_address per network / re-genesis),
unless the allow_morse_account_import_overwrite migration param is enabled
- Updated ONLY ONCE, when claimed (per morse_src_address per network / re-genesis)
properties:
application_stake:
title: Staked tokens for application actor corresponding to this account address
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
claimed_at_height:
type: string
format: int64
title: |-
Shannon height at which the account was claimed
Intended to remain empty until the account is claimed
morse_output_address:
description: |-
ONLY applicable to Morse node/supplier accounts.
Hex-encoded address of the Morse output account/wallet associated with the Morse node/supplier.
- E.g.: 00f9900606fa3d5c9179fc0c8513078a53a2073e
- Morse custodial (i.e. owner) address, which owns the staked tokens of the operator.
See 'pocket nodes --help' for more information. Note that this refers to the Morse CLI.
type: string
morse_src_address:
description: |-
Hex-encoded address of the Morse account whose balance will be claimed.
If this MorseClaimableAccount represents a Morse node/supplier:
- Morse non-custodial (i.e. operator) address.
- If morse_output_address is not set, this is the custodial address.
- See 'pocket nodes --help' for more information. Note that this refers to the Morse CLI.
type: string
shannon_dest_address:
type: string
title: |-
bech32-encoded address of the Shannon account to mint claimed balance
Intended to remain empty until the account is claimed
supplier_stake:
title: |-
Staked tokens for supplier actor corresponding to this account address
DEV_NOTE: Context for Morse:
- Supplier = Servicer or Node (not a full node) in Morse
- All Validators are Servicers; not all Servicers are Validators
- Top 100 staked Servicers are validators (automatic)
- Only accounts for servicer stake balance transition
TODO_MAINNET(@Olshansk): Develop strategy for bootstrapping validators in Shannon with cosmos ecosystem
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
unstaked_balance:
title: Unstaked upokt tokens (account balance) available for claiming
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
unstaking_time:
description: |-
The ISO 8601 UTC timestamp after which the Morse node/supplier unbonding period will have elapsed.
It reflects the "unbonding completion time" of the Morse node/supplier, but is called "unstaking time" to comply with necessary Morse data structures.
type: string
format: date-time
pocket.migration.MorseSupplierClaimSignerType:
description: |-
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_UNSPECIFIED: Unspecified signer type
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_CUSTODIAL_SIGNED_BY_NODE_ADDR: signer === addr === operator === owner
Custodial signer type
- The Morse node address is NOT EMPTY (i.e. operator)
- The Morse output address is EMPTY (i.e. owner)
- Implies that the operator and owner are THE SAME offchain identity
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_NON_CUSTODIAL_SIGNED_BY_NODE_ADDR: signer === operator === addr && owner !== operator
Non-custodial signer type
- The Morse node address is NOT EMPTY (i.e. operator)
- The Morse output address is NOT EMPTY (i.e. owner)
- Implies that the operator and owner are MOST LIKELY DIFFERENT offchain identities
- The operator is the one signing the supplier claim
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_NON_CUSTODIAL_SIGNED_BY_OWNER: signer === owner && owner !== addr
Owner non-custodial signer type
- The Morse node address is EMPTY (i.e. operator)
- The Morse output address is NOT EMPTY (i.e. owner)
- Implies that the operator and owner are MOST LIKELY different offchain identities
- The owner is the one signing the supplier claim
type: string
title: |-
MorseSupplierClaimSignerType
- Enum for Morse supplier claim signer type
default: MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_UNSPECIFIED
enum:
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_UNSPECIFIED
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_CUSTODIAL_SIGNED_BY_NODE_ADDR
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_NON_CUSTODIAL_SIGNED_BY_NODE_ADDR
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_NON_CUSTODIAL_SIGNED_BY_OWNER
pocket.migration.MsgClaimMorseAccount:
description: |-
- Execute a claim (one-time minting of tokens on Shannon)
- Claim the balance of a given Morse account per on-chain MorseClaimableAccounts
- Mint claimed balance to the given Shannon account
NOTE:
- The Shannon account specified must be the message signer
- Authz grants MAY be used to delegate claiming authority to other Shannon accounts
Next free index: 6
type: object
title: "MsgClaimMorseAccount is used to:"
properties:
morse_public_key:
description: The ed25519 public key of the morse account with morse_src_address.
type: string
format: byte
morse_signature:
type: string
format: byte
title: |-
The hex-encoded signature, by the Morse account, of this message (where this field is nil).
I.e.: morse_signature = private_key.sign(marshal(MsgClaimMorseAccount{morse_signature: nil, ...}))
shannon_dest_address:
description: The bech32-encoded address of the Shannon account to which the claimed balance will be minted.
type: string
shannon_signing_address:
description: |-
The bech32-encoded address of the Shannon account which is signing for this message.
This account is liable for any fees incurred by violating the constraints of Morse
account/actor claim message fee waiving; the tx contains ONE OR MORE Morse account/actor
claim messages AND has EXACTLY ONE signer.
type: string
pocket.migration.MsgClaimMorseAccountResponse:
description: |-
MsgClaimMorseAccountResponse is returned from MsgClaimMorseAccount.
- Indicates the morse_src_address of the claimed account
- Reports the claimed balance and commit height
Next free index: 4
type: object
properties:
claimed_balance:
description: The balance which was claimed.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
morse_src_address:
type: string
title: |-
The hex-encoded address of the Morse account whose balance will be claimed.
E.g.: 00f9900606fa3d5c9179fc0c8513078a53a2073e
session_end_height:
description: The session end height (on Shannon) in which the claim was committed (i.e. claimed).
type: string
format: int64
pocket.migration.MsgClaimMorseApplication:
description: |-
- Execute a claim (one-time minting of tokens on Shannon) of total tokens owned by a Morse account
- Mint claimed tokens to the given Shannon account
- Stake that Shannon account as an application for the given service_config and same stake amount
Next free index: 7
type: object
title: "MsgClaimMorseApplication is used to:"
properties:
morse_public_key:
description: The ed25519 public key of the morse account with morse_src_address.
type: string
format: byte
morse_signature:
type: string
format: byte
title: |-
The hex-encoded signature, by the Morse account, of this message (where this field is nil).
I.e.: morse_signature = private_key.sign(marshal(MsgClaimMorseAccount{morse_signature: nil, ...}))
service_config:
description: |-
The services this application is staked to request service for.
NOTE: This is not a repeated field, as in MsgStakeApplication,
because an application can only be staked for one service.
$ref: "#/definitions/pocket.shared.ApplicationServiceConfig"
shannon_dest_address:
description: |-
The bech32-encoded address of the Shannon account to which the claimed tokens
will be minted and from which the application will be staked.
type: string
shannon_signing_address:
description: |-
The bech32-encoded address of the Shannon account which is signing for this message.
This account is liable for any fees incurred by violating the constraints of Morse
account/actor claim message fee waiving; the tx contains ONE OR MORE Morse account/actor
claim messages AND has EXACTLY ONE signer.
type: string
pocket.migration.MsgClaimMorseApplicationResponse:
description: |-
MsgClaimMorseApplicationResponse is returned from MsgClaimMorseApplication.
- Indicates the morse_src_address of the claimed account
- Reports the unstaked balance claimed, application stake, and commit height
- Returns the staked application
Next free index: 6
type: object
properties:
application:
description: The application which was staked as a result of the claim.
$ref: "#/definitions/pocket.application.Application"
claimedApplicationStake:
description: |-
The stake of the application which was staked as a result of the claim.
If the application was already staked, this amount does not include the initial stake (i.e. only the portion which was "claimed").
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
claimed_balance:
description: The unstaked balance which was claimed.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
morse_src_address:
description: The hex-encoded address of the Morse account whose balance will be claimed.
type: string
session_end_height:
description: The session end height (on Shannon) in which the claim was committed (i.e. claimed).
type: string
format: int64
pocket.migration.MsgClaimMorseSupplier:
description: |-
- Execute a one-time minting of tokens on Shannon based on tokens owned by the given Morse account
- Use the on-chain MorseClaimableAccounts for verification
- Credit the minted tokens to the balance of the given Shannon account
- Automatically stake that Shannon account as a supplier
NOTE: The supplier module's staking fee parameter (at the time of claiming) is deducted from the claimed balance
Next free index: 9
type: object
title: "MsgClaimMorseSupplier is used to:"
properties:
morse_node_address:
type: string
title: |-
The hex-encoded address of the Morse non-custodial (i.e. operator) account.
- Unstaked balance will be migrated 1:1
- Stake will be migrated 1:1 from morse_node_address to shannon_operator_address
- Morse non-custodial (i.e. operator) address.
If morse_output_address is not set, this is the custodial address.
- See 'pocket nodes --help' for more information. Note that this refers to the Morse CLI.
E.g.: 00f9900606fa3d5c9179fc0c8513078a53a2073e
morse_public_key:
type: string
format: byte
title: |-
The ed25519 public key of EITHER the Morse node/supplier operator OR owner account.
- MUST correspond to the private key which was used to produce the morse_signature.
- MUST correspond to ONE OF THE FOLLOWING:
- morse_node_address
- morse_output_address
morse_signature:
type: string
format: byte
title: |-
The hex-encoded signature, of this message (where this field is nil).
I.e.: morse_signature = private_key.sign(marshal(MsgClaimMorseSupplier{morse_signature: nil, ...}))
- MUST match morse_public_key.
- MUST be signed by ONE OF THE FOLLOWING:
- Morse node account (i.e. operator); if signer_is_output_address is false
- Morse output account (i.e. owner); if signer_is_output_address is true
services:
description: The services this supplier is staked to provide service for.
type: array
items:
type: object
$ref: "#/definitions/pocket.shared.SupplierServiceConfig"
shannon_operator_address:
description: |-
The bech32-encoded address of the Shannon account to which will become the supplier operator.
If empty, the shannon_owner_address will be used.
See: https://dev.poktroll.com/operate/configs/supplier_staking_config#staking-types.
type: string
shannon_owner_address:
description: |-
The bech32-encoded address of the Shannon account to which the claimed tokens
will be minted and which become the supplier owner.
See: https://dev.poktroll.com/operate/configs/supplier_staking_config#staking-types.
type: string
shannon_signing_address:
description: |-
The bech32-encoded address of the Shannon account which is signing for this message.
This account is liable for any fees incurred by violating the constraints of Morse
account/actor claim message fee waiving; the tx contains ONE OR MORE Morse account/actor
claim messages AND has EXACTLY ONE signer.
type: string
signer_is_output_address:
description: |-
Set to true if the private key corresponding to the morse_output_address is producing the morse_signature.
For non-custodial claiming:
- This MUST be true.
- The morse_public_key MUST correspond to morse_output_address.
- The morse_signature MUST correspond to morse_output_address.
type: boolean
pocket.migration.MsgClaimMorseSupplierResponse:
description: |-
MsgClaimMorseSupplierResponse is returned from MsgClaimMorseSupplier.
- Indicates the morse_operator_address of the claimed account
- Reports the unstaked balance claimed, session end height, and staked supplier
- Includes claim signer type and signer address
Next free index: 10
type: object
properties:
claim_signer_type:
title: |-
The type of supplier claim signer, indicating which actor executed the claim
and whether it was a custodial or non-custodial claim.
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_NON_CUSTODIAL_SIGNED_BY_ADDR
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_CUSTODIAL_SIGNED_BY_OPERATOR
- MORSE_SUPPLIER_CLAIM_SIGNER_TYPE_CUSTODIAL_SIGNED_BY_OWNER
$ref: "#/definitions/pocket.migration.MorseSupplierClaimSignerType"
claimed_balance:
description: The unstaked balance which was claimed.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
claimed_supplier_stake:
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
morse_node_address:
type: string
title: |-
The hex-encoded address of the Morse non-custodial (i.e. operator) account.
- Unstaked balance will be migrated 1:1
- Stake will be migrated 1:1 from morse_node_address to shannon_operator_address
- Morse non-custodial (i.e. operator) address.
If morse_output_address is not set, this is the custodial address.
- See 'pocket nodes --help' for more information. Note that this refers to the Morse CLI.
E.g.: 00f9900606fa3d5c9179fc0c8513078a53a2073e
morse_output_address:
description: |-
Hex-encoded address of the Morse output account/wallet associated with the Morse node/supplier.
- E.g.: 00f9900606fa3d5c9179fc0c8513078a53a2073e
- Morse custodial (i.e. owner) address, which owns the staked tokens of the operator.
See 'pocket nodes --help' for more information. Note that this refers to the Morse CLI.
type: string
session_end_height:
description: The session end height (on Shannon) in which the claim was committed (i.e. claimed).
type: string
format: int64
supplier:
description: The supplier which was staked as a result of the claim.
$ref: "#/definitions/pocket.shared.Supplier"
pocket.migration.MsgImportMorseClaimableAccounts:
description: |-
- Create the on-chain MorseClaimableAccounts ONLY AND EXACTLY ONCE (per network / re-genesis)
- Import Morse account state derived from Morse state export
Next free index: 4
type: object
title: "MsgImportMorseClaimableAccounts is used to:"
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
morse_account_state:
title: Account state derived from Morse state export and `pocketd tx migration collect-morse-accounts`
$ref: "#/definitions/pocket.migration.MorseAccountState"
morse_account_state_hash:
description: |-
Verification (high-level):
$ pocketd tx migration collect-morse-accounts $<(pocket util export-genesis-for-reset)
Additional docs:
- pocket util export-genesis-for-migration --help
- pocketd tx migration collect-morse-accounts --help
type: string
format: byte
title: |-
Validates the morse_account_state sha256 hash:
- Transaction fails if hash doesn't match on-chain computation
- Off-chain social consensus should be reached before verification
pocket.migration.MsgImportMorseClaimableAccountsResponse:
description: |-
MsgImportMorseClaimableAccountsResponse is returned from MsgImportMorseClaimableAccounts.
- Indicates the canonical hash of the imported MorseAccountState
- Reports the number of claimable accounts imported
Next free index: 3
type: object
properties:
num_accounts:
description: Number of claimable accounts (EOAs) collected from Morse state export.
type: string
format: uint64
state_hash:
description: On-chain computed sha256 hash of the morse_account_state provided in the corresponding MsgCreateMorseAccountState.
type: string
format: byte
pocket.migration.MsgRecoverMorseAccount:
description: |-
- Execute a one-time minting of tokens on Shannon based on tokens owned by the given Morse account
- Credit the minted tokens to the balance of the given Shannon account
- Migrate unclaimable staked and liquid Morse tokens as liquid Shannon tokens
- MAY ONLY be executed by the authority
- ONLY intended for use on accounts with invalid addresses and/or known lost private keys
Next free index: 4
type: object
title: "MsgRecoverMorseAccount is used to:"
properties:
authority:
description: |-
The bech32-encoded address of the migration module authority account ("gov" module address by default).
ONLY the authority, or its delegates, MAY recover Morse recoverable accounts.
type: string
morse_src_address:
type: string
title: |-
EITHER:
- The hex-encoded address of the recoverable Morse account whose stake(s) and/or balance(s) will be recovered.
This address MAY be invalid but NEVER empty.
E.g.: 00f9900606fa3d5c9179fc0c8513078a53a2073e
- The name of a Morse module account whose balance will be recovered.
E.g. "dao" or "fee-collector"
shannon_dest_address:
description: |-
The bech32-encoded address of the Shannon account to which the Morse account's stake(s) and/or
balance(s) will be minted (recovered) as liquid Shannon tokens.
type: string
pocket.migration.MsgRecoverMorseAccountResponse:
description: |-
MsgRecoverMorseAccountResponse is returned from MsgRecoverMorseAccount.
- Indicates the morse_src_address of the recovered account
- Reports the sum of any actor stakes and unstaked balance recovered
- Reports the session end height in which the recovery was committed
- Returns the destination Shannon address
Next free index: 5
type: object
properties:
morse_src_address:
type: string
title: |-
EITHER:
- The hex-encoded address of the Morse account whose stake(s) and/or balances were recovered.
This address MAY be invalid but NEVER empty.
E.g.: 00f9900606fa3d5c9179fc0c8513078a53a2073e
- The name of a Morse module account whose balance was recovered.
E.g. "dao" or "fee-collector"
recovered_balance:
description: The sum of any unstaked and staked balances which were recovered.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
session_end_height:
description: The session end height (on Shannon) in which the recovery was committed (i.e. recovered).
type: string
format: int64
shannon_dest_address:
description: |-
The bech32-encoded address of the Shannon account to which the Morse account's stake(s) and/or
balance(s) were recovered.
type: string
pocket.migration.MsgUpdateParams:
description: |-
MsgUpdateParams is the Msg/UpdateParams request type.
- Used for updating the migration module parameters via governance
- All parameters must be supplied
Next free index: 3
type: object
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
params:
title: |-
Module parameters to update
NOTE: All parameters must be supplied
$ref: "#/definitions/pocket.migration.Params"
pocket.migration.MsgUpdateParamsResponse:
description: |-
MsgUpdateParamsResponse defines the response structure for executing a MsgUpdateParams message.
- Empty response on success
type: object
pocket.migration.Params:
description: |-
Params defines the parameters for the module.
Next free index: 3
type: object
properties:
allow_morse_account_import_overwrite:
description: |-
allow_morse_account_import_overwrite is a feature flag which is used to enable/disable
the re-importing of Morse claimable accounts by the authority.
Such a re-import will:
- Ignore (i.e. leave) ALL claimed destination Shannon accounts/actors
- Delete ALL existing onchain MorseClaimableAccounts
- Import the new set of MorseClaimableAccounts from the provided MsgImportMorseClaimableAccounts
This is useful for testing purposes, but should be disabled in production.
type: boolean
waive_morse_claim_gas_fees:
type: boolean
title: |-
waive_morse_claim_gas_fees is a feature flag used to enable/disable the waiving of gas fees for txs that:
- Contain exactly one secp256k1 signer
- Contain at least one Morse account/actor claim messages
- Do not contain any other messages other than Morse account/actor claim messages
pocket.migration.QueryAllMorseClaimableAccountResponse:
type: object
properties:
morseClaimableAccount:
type: array
items:
type: object
$ref: "#/definitions/pocket.migration.MorseClaimableAccount"
pagination:
$ref: "#/definitions/cosmos.base.query.v1beta1.PageResponse"
pocket.migration.QueryMorseClaimableAccountResponse:
type: object
properties:
morseClaimableAccount:
$ref: "#/definitions/pocket.migration.MorseClaimableAccount"
pocket.migration.QueryParamsResponse:
description: QueryParamsResponse is response type for the Query/Params RPC method.
type: object
properties:
params:
description: params holds all the parameters of this module.
$ref: "#/definitions/pocket.migration.Params"
pocket.proof.Claim:
type: object
title: Claim is the serialized object stored onchain for claims pending to be proven
properties:
proof_validation_status:
title: "Important: This field MUST only be set by proofKeeper#EnsureValidProofSignaturesAndClosestPath"
$ref: "#/definitions/pocket.proof.ClaimProofStatus"
root_hash:
description: Root hash from smt.SMST#Root().
type: string
format: byte
session_header:
description: Session header this claim is for.
$ref: "#/definitions/pocket.session.SessionHeader"
supplier_operator_address:
description: |-
Address of the supplier's operator that submitted this claim.
the address of the supplier's operator that submitted this claim
type: string
pocket.proof.ClaimProofStatus:
type: string
title: |-
Status of proof validation for a claim
Default is PENDING_VALIDATION regardless of proof requirement
default: PENDING_VALIDATION
enum:
- PENDING_VALIDATION
- VALIDATED
- INVALID
pocket.proof.MsgCreateClaim:
type: object
properties:
root_hash:
type: string
format: byte
title: root returned from smt.SMST#Root()
session_header:
$ref: "#/definitions/pocket.session.SessionHeader"
supplier_operator_address:
type: string
pocket.proof.MsgCreateClaimResponse:
type: object
properties:
claim:
$ref: "#/definitions/pocket.proof.Claim"
pocket.proof.MsgSubmitProof:
type: object
properties:
proof:
type: string
format: byte
title: serialized version of *smt.SparseCompactMerkleClosestProof
session_header:
$ref: "#/definitions/pocket.session.SessionHeader"
supplier_operator_address:
type: string
pocket.proof.MsgSubmitProofResponse:
type: object
properties:
proof:
$ref: "#/definitions/pocket.proof.Proof"
pocket.proof.MsgUpdateParam:
description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
type: object
properties:
as_bytes:
type: string
format: byte
as_coin:
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
as_float:
type: number
format: double
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
name:
type: string
title: |-
The (name, as_type) tuple must match the corresponding name and type as
specified in the `Params`` message in `proof/params.proto.`
pocket.proof.MsgUpdateParamResponse:
description: |-
MsgUpdateParamResponse defines the response structure for executing a
MsgUpdateParam message after a single param update.
type: object
properties:
params:
$ref: "#/definitions/pocket.proof.Params"
pocket.proof.MsgUpdateParams:
description: MsgUpdateParams is the Msg/UpdateParams request type to update all params at once.
type: object
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
params:
description: |-
params defines the x/proof parameters to update.
NOTE: All parameters must be supplied.
$ref: "#/definitions/pocket.proof.Params"
pocket.proof.MsgUpdateParamsResponse:
description: |-
MsgUpdateParamsResponse defines the response structure for executing a
MsgUpdateParams message.
type: object
pocket.proof.Params:
description: Params defines the parameters for the module.
type: object
properties:
proof_missing_penalty:
description: |-
proof_missing_penalty is the number of tokens (uPOKT) which should be slashed from a supplier
when a proof is required (either via proof_requirement_threshold or proof_missing_penalty)
but is not provided.
TODO_MAINNET_MIGRATION: Consider renaming this to `proof_missing_penalty_upokt`.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
proof_request_probability:
description: |-
proof_request_probability is the probability of a session requiring a proof
if it's cost (i.e. compute unit consumption) is below the ProofRequirementThreshold.
type: number
format: double
proof_requirement_threshold:
description: |-
proof_requirement_threshold is the session cost (i.e. compute unit consumption)
threshold which asserts that a session MUST have a corresponding proof when its cost
is equal to or above the threshold. This is in contrast to the this requirement
being determined probabilistically via ProofRequestProbability.
TODO_MAINNET_MIGRATION: Consider renaming this to `proof_requirement_threshold_upokt`.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
proof_submission_fee:
description: |-
proof_submission_fee is the number of tokens (uPOKT) which should be paid by
the supplier operator when submitting a proof.
This is needed to account for the cost of storing proofs onchain and prevent
spamming (i.e. sybil bloat attacks) the network with non-required proofs.
TODO_MAINNET_MIGRATION: Consider renaming this to `proof_submission_fee_upokt`.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
pocket.proof.Proof:
type: object
properties:
closest_merkle_proof:
description: The serialized SMST compacted proof from the `#ClosestProof()` method.
type: string
format: byte
session_header:
description: The session header of the session that this claim is for.
$ref: "#/definitions/pocket.session.SessionHeader"
supplier_operator_address:
description: Address of the supplier's operator that submitted this proof.
type: string
pocket.proof.QueryAllClaimsResponse:
type: object
properties:
claims:
type: array
items:
type: object
$ref: "#/definitions/pocket.proof.Claim"
pagination:
$ref: "#/definitions/cosmos.base.query.v1beta1.PageResponse"
pocket.proof.QueryAllProofsResponse:
type: object
properties:
pagination:
$ref: "#/definitions/cosmos.base.query.v1beta1.PageResponse"
proofs:
type: array
items:
type: object
$ref: "#/definitions/pocket.proof.Proof"
pocket.proof.QueryGetClaimResponse:
type: object
properties:
claim:
$ref: "#/definitions/pocket.proof.Claim"
pocket.proof.QueryGetProofResponse:
type: object
properties:
proof:
$ref: "#/definitions/pocket.proof.Proof"
pocket.proof.QueryParamsResponse:
description: QueryParamsResponse is response type for the Query/Params RPC method.
type: object
properties:
params:
description: params holds all the parameters of this module.
$ref: "#/definitions/pocket.proof.Params"
pocket.service.MsgAddService:
description: |-
MsgAddService defines a message for adding a new message to the network.
Services can be added by any actor in the network making them truly
permissionless.
type: object
properties:
owner_address:
description: The Bech32 address of the service owner.
type: string
service:
title: The Service being added to the network
$ref: "#/definitions/pocket.shared.Service"
pocket.service.MsgAddServiceResponse:
type: object
properties:
service:
$ref: "#/definitions/pocket.shared.Service"
pocket.service.MsgUpdateParam:
description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
type: object
properties:
as_coin:
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
as_uint64:
type: string
format: uint64
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
name:
type: string
title: |-
The (name, as_type) tuple must match the corresponding name and type as
specified in the `Params` message in `proof/params.proto.`
pocket.service.MsgUpdateParamResponse:
description: |-
MsgUpdateParamResponse defines the response structure for executing a
MsgUpdateParam message after a single param update.
type: object
properties:
params:
$ref: "#/definitions/pocket.service.Params"
pocket.service.MsgUpdateParams:
description: MsgUpdateParams is the Msg/UpdateParams request type.
type: object
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
params:
description: |-
params defines the x/service parameters to update.
NOTE: All parameters must be supplied.
$ref: "#/definitions/pocket.service.Params"
pocket.service.MsgUpdateParamsResponse:
description: |-
MsgUpdateParamsResponse defines the response structure for executing a
MsgUpdateParams message.
type: object
pocket.service.Params:
description: Params defines the parameters for the module.
type: object
properties:
add_service_fee:
description: |-
The amount of uPOKT required to add a new service.
This will be deducted from the signer's account balance,
and transferred to the pocket network foundation.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
target_num_relays:
description: |-
target_num_relays is the target for the EMA of the number of relays per session.
Per service, onchain relay mining difficulty will be adjusted to maintain this target.
type: string
format: uint64
pocket.service.QueryAllRelayMiningDifficultyResponse:
type: object
properties:
pagination:
$ref: "#/definitions/cosmos.base.query.v1beta1.PageResponse"
relayMiningDifficulty:
type: array
items:
type: object
$ref: "#/definitions/pocket.service.RelayMiningDifficulty"
pocket.service.QueryAllServicesResponse:
type: object
properties:
pagination:
$ref: "#/definitions/cosmos.base.query.v1beta1.PageResponse"
service:
type: array
items:
type: object
$ref: "#/definitions/pocket.shared.Service"
pocket.service.QueryGetRelayMiningDifficultyResponse:
type: object
properties:
relayMiningDifficulty:
$ref: "#/definitions/pocket.service.RelayMiningDifficulty"
pocket.service.QueryGetServiceResponse:
type: object
properties:
service:
$ref: "#/definitions/pocket.shared.Service"
pocket.service.QueryParamsResponse:
description: QueryParamsResponse is response type for the Query/Params RPC method.
type: object
properties:
params:
description: params holds all the parameters of this module.
$ref: "#/definitions/pocket.service.Params"
pocket.service.RelayMiningDifficulty:
description: |-
RelayMiningDifficulty is a message used to store the onchain Relay Mining
difficulty associated with a specific service ID.
TODO_TECHDEBT: Embed this message in the Service message.
type: object
properties:
block_height:
description: |-
The block height at which this relay mining difficulty was computed.
This is needed to determine how much time has passed since the last time
the exponential moving average was computed.
type: string
format: int64
num_relays_ema:
description: The exponential moving average of the number of relays for this service.
type: string
format: uint64
service_id:
description: The service ID the relay mining difficulty is associated with.
type: string
target_hash:
description: |-
The target hash determining the difficulty to mine relays for this service.
For example, if we use sha256 to hash the (RelayRequest,ReqlayResponse) tuple,
and the difficulty has 4 leading zero bits, then the target hash would be:
0b0000111... (until 32 bytes are filled up).
type: string
format: byte
pocket.session.MsgUpdateParam:
type: object
properties:
as_uint64:
type: string
format: uint64
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
name:
type: string
pocket.session.MsgUpdateParamResponse:
type: object
properties:
params:
$ref: "#/definitions/pocket.session.Params"
pocket.session.MsgUpdateParams:
description: MsgUpdateParams is the Msg/UpdateParams request type.
type: object
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
params:
description: |-
params defines the x/session parameters to update.
NOTE: All parameters must be supplied.
$ref: "#/definitions/pocket.session.Params"
pocket.session.MsgUpdateParamsResponse:
description: |-
MsgUpdateParamsResponse defines the response structure for executing a
MsgUpdateParams message.
type: object
pocket.session.Params:
description: Params defines the parameters for the module.
type: object
properties:
num_suppliers_per_session:
description: |-
num_suppliers_per_session is the maximum number of suppliers per session
(application:supplier pair for a given session number).
type: string
format: uint64
pocket.session.QueryGetSessionResponse:
type: object
properties:
session:
$ref: "#/definitions/pocket.session.Session"
pocket.session.QueryParamsResponse:
description: QueryParamsResponse is response type for the Query/Params RPC method.
type: object
properties:
params:
description: params holds all the parameters of this module.
$ref: "#/definitions/pocket.session.Params"
pocket.session.Session:
description: |-
Session is a fully hydrated session object that contains all the information for the Session
and its parcipants.
type: object
properties:
application:
title: A fully hydrated application object this session is for
$ref: "#/definitions/pocket.application.Application"
header:
title: The header of the session containing lightweight data
$ref: "#/definitions/pocket.session.SessionHeader"
num_blocks_per_session:
type: string
format: int64
title: The number of blocks per session when this session started
session_id:
type: string
title: A unique pseudoranom ID for this session
session_number:
type: string
format: int64
title: The session number since genesis
suppliers:
type: array
title: A fully hydrated set of servicers that are serving the application
items:
type: object
$ref: "#/definitions/pocket.shared.Supplier"
pocket.session.SessionHeader:
description: |-
SessionHeader is a lightweight header for a session that can be passed around.
It is the minimal amount of data required to hydrate & retrieve all data relevant to the session.
type: object
properties:
application_address:
description: The Bech32 address of the application.
type: string
service_id:
type: string
title: The service id this session is for
session_end_block_height:
description: |-
Note that`session_end_block_height` is a derivative of (`start` + `num_blocks_per_session`)
as goverened by onchain params at the time of the session start.
It is stored as an additional field to simplofy business logic in case
the number of blocks_per_session changes during the session.
The height at which this session ended, this is the last block of the session
type: string
format: int64
session_id:
description: A unique pseudoranom ID for this session
type: string
title: "NOTE: session_id can be derived from the above values using onchain but is included in the header for convenience"
session_start_block_height:
type: string
format: int64
title: The height at which this session started
pocket.shared.ApplicationServiceConfig:
type: object
title: ApplicationServiceConfig holds the service configuration the application stakes for
properties:
service_id:
type: string
title: The Service ID for which the application is configured
pocket.shared.ConfigOption:
type: object
title: Key-value wrapper for config options, as proto maps can't be keyed by enums
properties:
key:
title: Config option key
$ref: "#/definitions/pocket.shared.ConfigOptions"
value:
type: string
title: Config option value
pocket.shared.ConfigOptions:
description: |-
Enum to define configuration options
TODO_RESEARCH: Should these be configs, SLAs or something else? There will be more discussion once we get closer to implementing onchain QoS.
- UNKNOWN_CONFIG: Undefined config option
- TIMEOUT: Timeout setting
type: string
default: UNKNOWN_CONFIG
enum:
- UNKNOWN_CONFIG
- TIMEOUT
pocket.shared.MsgUpdateParam:
description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
type: object
properties:
as_bytes:
type: string
format: byte
as_string:
type: string
as_uint64:
type: string
format: uint64
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
name:
type: string
pocket.shared.MsgUpdateParamResponse:
description: |-
MsgUpdateParamResponse defines the response structure for executing a
MsgUpdateParam message after a single param update.
type: object
properties:
params:
$ref: "#/definitions/pocket.shared.Params"
pocket.shared.MsgUpdateParams:
description: MsgUpdateParams is the Msg/UpdateParams request type.
type: object
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
params:
description: "NOTE: All parameters must be supplied."
$ref: "#/definitions/pocket.shared.Params"
pocket.shared.MsgUpdateParamsResponse:
description: |-
MsgUpdateParamsResponse defines the response structure for executing a
MsgUpdateParams message.
type: object
pocket.shared.Params:
description: Params defines the parameters for the module.
type: object
properties:
application_unbonding_period_sessions:
description: |-
application_unbonding_period_sessions is the number of sessions that an application must wait after
unstaking before their staked assets are moved to their account balance.
Onchain business logic requires, and ensures, that the corresponding block count of the
application unbonding period will exceed the end of its corresponding proof window close height.
type: string
format: uint64
claim_window_close_offset_blocks:
description: |-
claim_window_close_offset_blocks is the number of blocks after the claim window
open height, at which the claim window closes.
type: string
format: uint64
claim_window_open_offset_blocks:
description: |-
claim_window_open_offset_blocks is the number of blocks after the session grace
period height, at which the claim window opens.
type: string
format: uint64
compute_unit_cost_granularity:
description: |-
compute_unit_cost_granularity is the fraction of the base unit (uPOKT) used
to represent the smallest price of a single compute unit.
compute_unit_cost_granularity defines the smallest fraction of uPOKT that can represent
the cost of a single compute unit.
It acts as a denominator in the formula:
compute_unit_cost_in_uPOKT = compute_units_to_tokens_multiplier / compute_unit_cost_granularity
This enables high-precision pricing of compute units using integer math.
For example:
+-------------------------------+---------------------------------------------+
| compute_unit_cost_granularity | compute_units_to_tokens_multiplier unit |
+-------------------------------+---------------------------------------------+
| 1 | uPOKT |
| 1_000 | nPOKT (nanoPOKT, 1e-3 uPOKT) |
| 1_000_000 | pPOKT (picoPOKT, 1e-6 uPOKT) |
+-------------------------------+---------------------------------------------+
⚠️ Note: This value is a configurable global network parameter (not a constant).
It must be a power of 10, allowing precise denomination shifts without affecting
ongoing sessions. This prevents sessions from settling using parameters that
were not in effect during their creation.
type: string
format: uint64
compute_units_to_tokens_multiplier:
description: |-
The amount of tokens that a compute unit should translate to when settling a session.
It is denominated in fractional uPOKT (1/compute_unit_cost_granularity)
DEV_NOTE: This used to be under x/tokenomics but has been moved here to avoid cyclic dependencies.
type: string
format: uint64
gateway_unbonding_period_sessions:
description: |-
gateway_unbonding_period_sessions is the number of sessions that a gateway must wait after
unstaking before their staked assets are moved to its account balance.
type: string
format: uint64
grace_period_end_offset_blocks:
description: |-
grace_period_end_offset_blocks is the number of blocks, after the session end height,
during which the supplier can still service payable relays.
Suppliers will need to recreate a claim for the previous session (if already created) to
get paid for the additional relays.
type: string
format: uint64
num_blocks_per_session:
description: num_blocks_per_session is the number of blocks between the session start & end heights.
type: string
format: uint64
proof_window_close_offset_blocks:
description: |-
proof_window_close_offset_blocks is the number of blocks after the proof window
open height, at which the proof window closes.
type: string
format: uint64
proof_window_open_offset_blocks:
description: |-
proof_window_open_offset_blocks is the number of blocks after the claim window
close height, at which the proof window opens.
type: string
format: uint64
supplier_unbonding_period_sessions:
description: |-
supplier_unbonding_period_sessions is the number of sessions that a supplier must wait after
unstaking before their staked assets are moved to their account balance.
Onchain business logic requires, and ensures, that the corresponding block count of the unbonding
period will exceed the end of any active claim & proof lifecycles.
type: string
format: uint64
pocket.shared.QueryParamsResponse:
description: QueryParamsResponse is response type for the Query/Params RPC method.
type: object
properties:
params:
description: params holds all the parameters of this module.
$ref: "#/definitions/pocket.shared.Params"
pocket.shared.RPCType:
description: |-
- UNKNOWN_RPC: Undefined RPC type
- GRPC: gRPC
- WEBSOCKET: WebSocket
- JSON_RPC: JSON-RPC
- REST: REST
type: string
title: Enum to define RPC types
default: UNKNOWN_RPC
enum:
- UNKNOWN_RPC
- GRPC
- WEBSOCKET
- JSON_RPC
- REST
pocket.shared.Service:
type: object
title: Service message to encapsulate unique and semantic identifiers for a service on the network
properties:
compute_units_per_relay:
description: Compute units required per relay for this service
type: string
format: uint64
title: |-
The cost of a single relay for this service in terms of compute units.
Must be used alongside the global 'compute_units_to_tokens_multiplier' to calculate the cost of a relay for this service.
cost_per_relay_for_specific_service = compute_units_per_relay_for_specific_service * compute_units_to_tokens_multiplier_global_value
id:
description: Unique identifier for the service
type: string
title: For example, what if we want to request a session for a certain service but with some additional configs that identify it?
name:
description: (Optional) Human readable description of the service
type: string
title: "TODO_POST_MAINNET: Rename service.name to service.description"
owner_address:
description: |-
The owner address that created the service.
It is the address that receives rewards based on the Service's onchain usage
It is the only address that can update the service configuration (e.g. compute_units_per_relay),
or make other updates to it.
The Bech32 address of the service owner / creator
type: string
pocket.shared.ServiceConfigUpdate:
description: |-
ServiceConfigUpdate tracks a change in a supplier's service configurations
at a specific block height, enabling tracking of configuration changes over time.
This record helps maintain a complete history of service configs and their availability periods.
type: object
properties:
activation_height:
type: string
format: int64
title: Block height at which this service configuration became active in the network
deactivation_height:
type: string
format: int64
title: |-
Block height at which this service configuration was deactivated (0 if still active)
For service configs scheduled for deactivation:
- This field stores the block height when deactivation will occur
- After deactivation, the config remains in history only as needed for claim settlement
- Once no longer required for settlement, the config is automatically removed by
the EndBlockerPruneSupplierServiceConfigHistory process
operator_address:
type: string
title: Operator address of the supplier corresponding to the service configuration change
service:
title: The specific service configuration that was added, modified or scheduled for removal
$ref: "#/definitions/pocket.shared.SupplierServiceConfig"
pocket.shared.ServiceRevenueShare:
type: object
title: ServiceRevenueShare message to hold revenue share configuration details
properties:
address:
type: string
title: The Bech32 address of the revenue share recipient
rev_share_percentage:
type: string
format: uint64
title: The percentage of revenue share the recipient will receive
pocket.shared.Supplier:
type: object
title: Supplier represents an actor in Pocket Network that provides RPC services
properties:
operator_address:
description: |-
Operator address managing the offchain server
Immutable for supplier's lifespan - requires unstake/re-stake to change.
Can update supplier configs except for owner address.
type: string
owner_address:
type: string
title: |-
Owner address that controls the staked funds and receives rewards by default
Cannot be updated by the operator
service_config_history:
description: |-
List of historical service configuration updates, tracking the suppliers
services update and corresponding activation heights.
type: array
items:
type: object
$ref: "#/definitions/pocket.shared.ServiceConfigUpdate"
services:
type: array
title: List of service configurations supported by this supplier
items:
type: object
$ref: "#/definitions/pocket.shared.SupplierServiceConfig"
stake:
title: Total amount of staked uPOKT
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
unstake_session_end_height:
type: string
format: uint64
title: Session end height when supplier initiated unstaking (0 if not unstaking)
pocket.shared.SupplierEndpoint:
type: object
title: SupplierEndpoint message to hold service configuration details
properties:
configs:
type: array
title: Additional configuration options for the endpoint
items:
type: object
$ref: "#/definitions/pocket.shared.ConfigOption"
rpc_type:
title: Type of RPC exposed on the url above
$ref: "#/definitions/pocket.shared.RPCType"
url:
type: string
title: URL of the endpoint
pocket.shared.SupplierServiceConfig:
type: object
title: SupplierServiceConfig holds the service configuration the supplier stakes for
properties:
endpoints:
type: array
title: List of endpoints for the service
items:
type: object
$ref: "#/definitions/pocket.shared.SupplierEndpoint"
rev_share:
type: array
title: List of revenue share configurations for the service
items:
type: object
$ref: "#/definitions/pocket.shared.ServiceRevenueShare"
service_id:
type: string
title: The Service ID for which the supplier is configured
pocket.supplier.MsgStakeSupplier:
type: object
properties:
operator_address:
type: string
title: The Bech32 address of the operator (i.e. provider, non-custodial)
owner_address:
type: string
title: The Bech32 address of the owner (i.e. custodial, staker)
services:
type: array
title: The list of services this supplier is staked to provide service for
items:
type: object
$ref: "#/definitions/pocket.shared.SupplierServiceConfig"
signer:
type: string
title: The Bech32 address of the message signer (i.e. owner or operator)
stake:
title: The total amount of uPOKT the supplier has staked. Must be ≥ to the current amount that the supplier has staked (if any)
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
pocket.supplier.MsgStakeSupplierResponse:
type: object
properties:
supplier:
$ref: "#/definitions/pocket.shared.Supplier"
pocket.supplier.MsgUnstakeSupplier:
type: object
properties:
operator_address:
type: string
title: The Bech32 address of the operator (i.e. provider, non-custodial)
signer:
type: string
title: The Bech32 address of the message signer (i.e. owner or operator)
pocket.supplier.MsgUnstakeSupplierResponse:
type: object
properties:
supplier:
$ref: "#/definitions/pocket.shared.Supplier"
pocket.supplier.MsgUpdateParam:
description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
type: object
properties:
as_coin:
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
name:
type: string
pocket.supplier.MsgUpdateParamResponse:
type: object
properties:
params:
$ref: "#/definitions/pocket.supplier.Params"
pocket.supplier.MsgUpdateParams:
description: MsgUpdateParams is the Msg/UpdateParams request type.
type: object
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
params:
description: |-
params defines the x/supplier parameters to update.
NOTE: All parameters must be supplied.
$ref: "#/definitions/pocket.supplier.Params"
pocket.supplier.MsgUpdateParamsResponse:
description: |-
MsgUpdateParamsResponse defines the response structure for executing a
MsgUpdateParams message.
type: object
pocket.supplier.Params:
description: Params defines the parameters for the module.
type: object
properties:
min_stake:
description: |-
min_stake is the minimum amount of uPOKT that a supplier must stake to be
included in network sessions and remain staked.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
staking_fee:
description: staking_fee is the fee charged by the protocol for staking a supplier.
$ref: "#/definitions/cosmos.base.v1beta1.Coin"
pocket.supplier.QueryAllSuppliersResponse:
type: object
properties:
pagination:
$ref: "#/definitions/cosmos.base.query.v1beta1.PageResponse"
supplier:
type: array
items:
type: object
$ref: "#/definitions/pocket.shared.Supplier"
pocket.supplier.QueryGetSupplierResponse:
type: object
properties:
supplier:
$ref: "#/definitions/pocket.shared.Supplier"
pocket.supplier.QueryParamsResponse:
description: QueryParamsResponse is response type for the Query/Params RPC method.
type: object
properties:
params:
description: params holds all the parameters of this module.
$ref: "#/definitions/pocket.supplier.Params"
pocket.tokenomics.MintAllocationPercentages:
description: |-
MintAllocationPercentages represents the distribution of newly minted tokens,
at the end of claim settlement, as a result of the Global Mint TLM.
type: object
properties:
application:
description: |-
allocation_application is the percentage of the minted tokens which are sent
to the application account address during claim settlement.
type: number
format: double
dao:
description: |-
dao is the percentage of the minted tokens which are sent
to the DAO reward address during claim settlement.
type: number
format: double
proposer:
description: |-
proposer is the percentage of the minted tokens which are sent
to the block proposer account address during claim settlement.
type: number
format: double
source_owner:
description: |-
source_owner is the percentage of the minted tokens which are sent
to the service source owner account address during claim settlement.
type: number
format: double
supplier:
description: |-
supplier is the percentage of the minted tokens which are sent
to the block supplier account address during claim settlement.
type: number
format: double
pocket.tokenomics.MsgUpdateParam:
description: MsgUpdateParam is the Msg/UpdateParam request type to update a single param.
type: object
properties:
as_float:
type: number
format: double
as_mint_allocation_percentages:
$ref: "#/definitions/pocket.tokenomics.MintAllocationPercentages"
as_string:
type: string
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
name:
type: string
title: |-
The (name, as_type) tuple must match the corresponding name and type as
specified in the `Params` message in `proof/params.proto.`
pocket.tokenomics.MsgUpdateParamResponse:
description: |-
MsgUpdateParamResponse defines the response structure for executing a
MsgUpdateParam message after a single param update.
type: object
properties:
params:
$ref: "#/definitions/pocket.tokenomics.Params"
pocket.tokenomics.MsgUpdateParams:
description: MsgUpdateParams is the Msg/UpdateParams request type to update all params at once.
type: object
properties:
authority:
description: authority is the address that controls the module (defaults to x/gov unless overwritten).
type: string
params:
description: |-
params defines the x/tokenomics parameters to update.
NOTE: All parameters must be supplied.
$ref: "#/definitions/pocket.tokenomics.Params"
pocket.tokenomics.MsgUpdateParamsResponse:
description: |-
MsgUpdateParamsResponse defines the response structure for executing a
MsgUpdateParams message.
type: object
properties:
params:
$ref: "#/definitions/pocket.tokenomics.Params"
pocket.tokenomics.Params:
description: Params defines the parameters for the tokenomics module.
type: object
properties:
dao_reward_address:
description: |-
dao_reward_address is the address to which mint_allocation_dao percentage of the
minted tokens are at the end of claim settlement.
Bech32 cosmos address
type: string
global_inflation_per_claim:
description: global_inflation_per_claim is the percentage of a claim's claimable uPOKT amount which will be minted on settlement.
type: number
format: double
mint_allocation_percentages:
description: |-
mint_allocation_percentages represents the distribution of newly minted tokens,
at the end of claim settlement, as a result of the Global Mint TLM.
$ref: "#/definitions/pocket.tokenomics.MintAllocationPercentages"
pocket.tokenomics.QueryParamsResponse:
description: QueryParamsResponse is response type for the Query/Params RPC method.
type: object
properties:
params:
description: params holds all the parameters of this module.
$ref: "#/definitions/pocket.tokenomics.Params"
